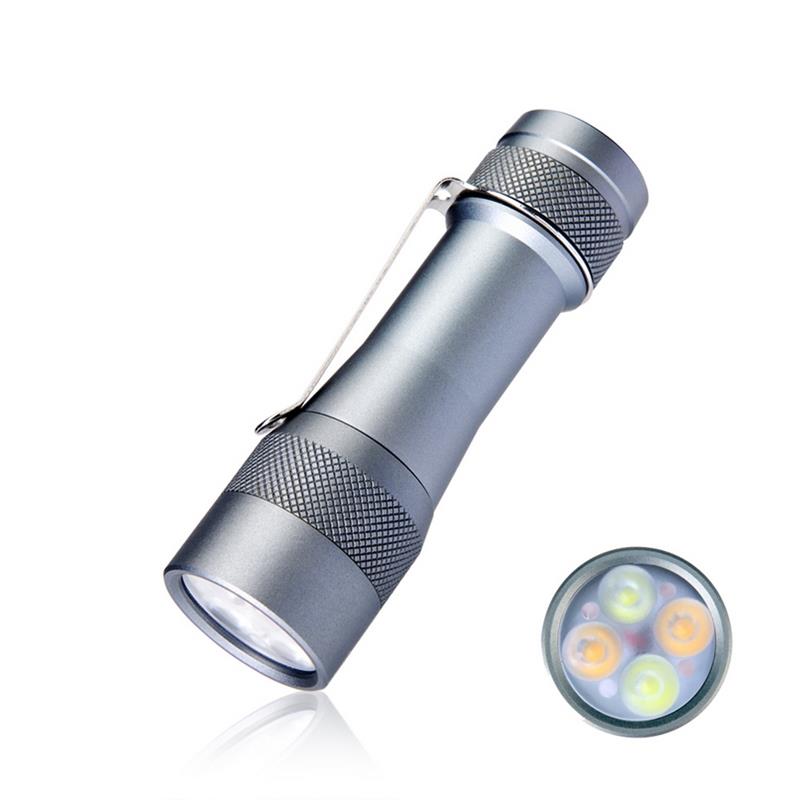

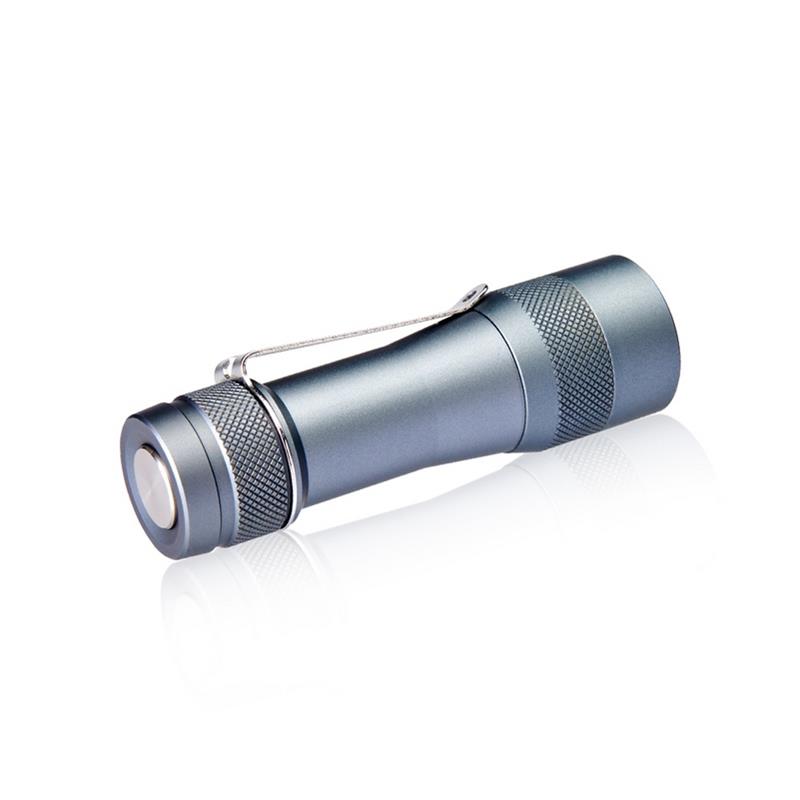

Lumintop FW4X XPL+HI NICHIA 219C 3150LM LED Flashlight 3000K/4000K/4500K/5000K/6500K Light Color Adjustable 18650 Mini Torch
|LED||2 XPL HI LED and 2 NICHIA 219C LED|
|Switch||Tail stainless steel electronic switch|
|Battery||1x 18650 lithium-ion battery, without protection, maximum length 66mm|
|Optical lens||Standard TIP optical lens|
|Material||Hard coated anodized aluminum|
|Weight||65g, without battery|
Gear adjustment (default):
Regular gears: low bright – medium bright – high bright (with gear memory)
Hidden gears: energy-saving gear, very bright gear (without memory)
Click the switch to turn on, click again to change gears, long press 1 second to turn off
Energy-saving gear: long press 1 second to enter the energy-saving gear in the off state, click to enter the regular gear cycle, long press 1 second to shut down.
Extremely bright gear: double-click to enter the extremely bright in the power-on state, click to enter the regular gear cycle, long press 1 second to shut down
power prompt: shutdown state, three consecutive clicks switch into the power prompt: such as 3.8V = the main light flashes 3 times in a row, a small suspension and then flash 8 times in a row, cycle 3 times and then shut down (or you can directly click to shut down)
Locked mode: four consecutive blows in the off state to enter the lock mode, click the switch to open the low light, release both extinguished, four consecutive blows to unlock or power off to unlock.
Color temperature adjustment:
Shutdown state double-click to enter the color temperature mode (color temperature adjustment without memory)
Click for five color temperature cycle: 3000K-4000K-4500K-5000K-6500K, double-click the selected color temperature after shutdown
Long press the switch for the color temperature long 3000K-6500K stepless adjustment (not cyclic), let go of the long press again to reverse the stepless adjustment of color temperature, to be adjusted to the desired color temperature after the release to determine, double-click to shut down, if you let go of the click to enter the five-speed color temperature mode.
Operation Instruction and Mode Group Settings:
ONIOFF: One-click the switch for ON, press, and hold the switch for 1 second to turn OFF.
Group 1: Low 1- Med 1- High 1 (Defaulted)
Group 2:Low 2- Med 2- High 2
Group 3: Med 1- High 1 -Strobe
Group 4: SOS- Breath-Beacon
Group 5: Mode memory and non-memory shifting
1 x Lumintop FW4X Flashlight (Not includes battery and charger)
