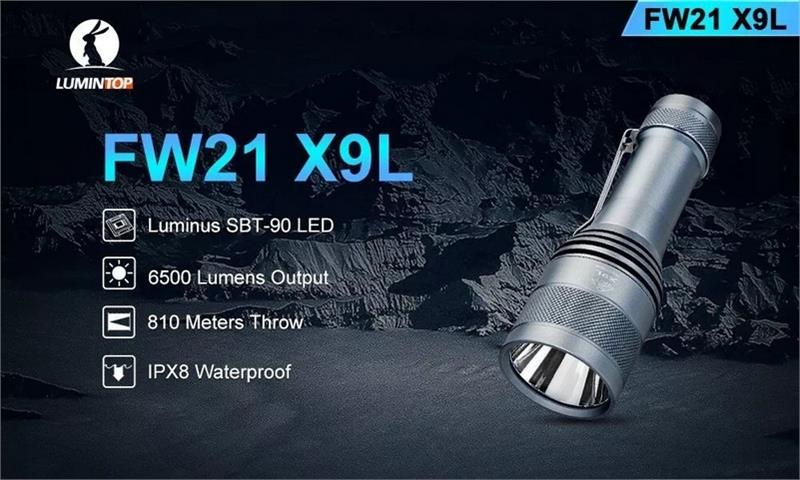

LUMINTOP FW2 X9L SBT90.2 6500LM Infinite Dimming EDC LED Flashlight 810M Long Throw Powerful 21700 Tactical Flashlight
|Emitter||Single LEDs on a copper DTP MCPCB|
|Optic||Aluminum smooth reflector|
|Lens||Glass with anti-reflective coating|
|Intensity||163,800 cd ANSI throw ~810 m|
|Firmware||The X9L uses free software called , distributed under the terms of the GPL v3. Code is available from http://tiny.cc/TKAnduril|
|User interfaces|| By default the X9L is set to use SMOOTH RAMPING. Instant access to TURBO mode is also provided.
 A more conventional STEPPED RAMPING UI is available if you like discrete modes level. You can choose how many steps you want.
 MOMENTARY mode is useful for signaling purposes or rapidly/briefly lighting up targets. To exit this mode, physically disconnect power
 MUGGLE mode uses a reduced output.
 It has an electronic LOCKOUT for safety, but acts also as momentary low light.Other functions: Battery check, sunset, beacon, tactical strobe, party strobe, bike flasher, storm
|Battery||One flat-top or button-top 21700 cell. An unprotected cell is recommended.Max. length 70.5 mm. Cell is not included.|
|Driver||FET+7+1 driver. Low parasitic drain while OFF|
|Body||Aluminum with hard-coat anodizing|

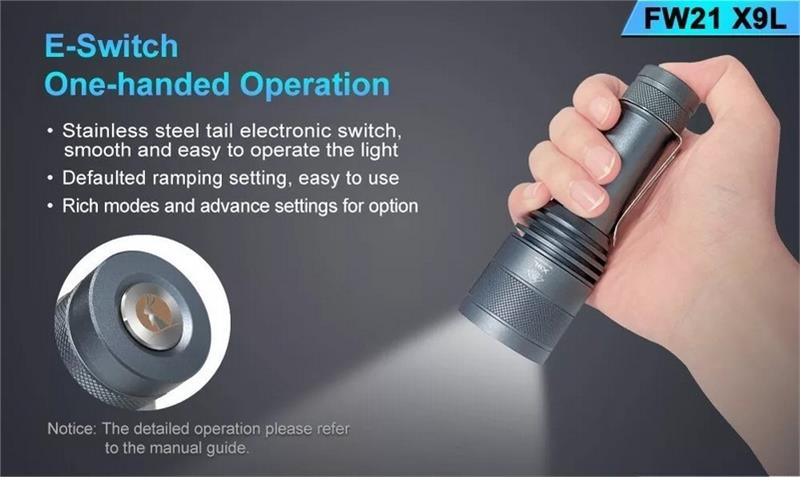

|Switch||Electronic tail switch|
|Ingress rating||Equivalent to IPX7|

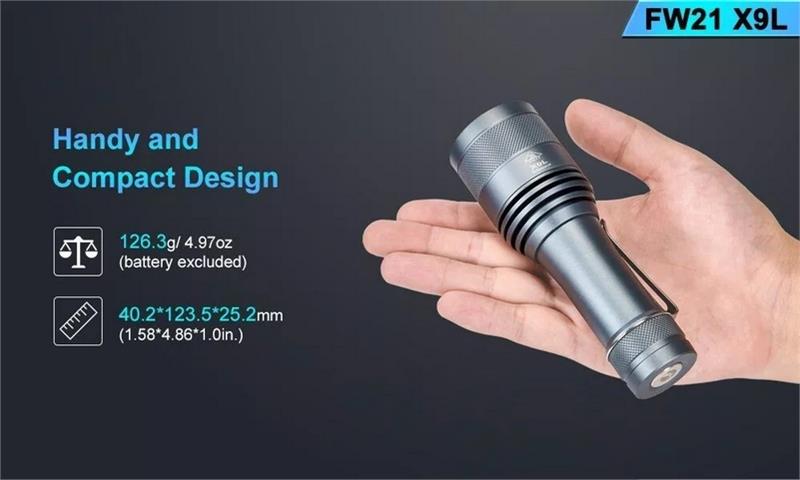

|Weight||Approximately 126.3 g without cells|
|Size||40 x 123.6 x 25.2mm (Head x length x tube|
1.The X9L uses a tube in tube design to realize the electronic
tail switch. The outside tube is the regular battery negative, the
inside carries the switch signal.
2. If there is a short between and switch tube the lamp is const-antly on.
3. If side bumps misalign the inner tube: Loosen and retighten the
4. You tried to configure your lamp and now it is only working if you
press the button. When you
press 4x from OFF you lock out the
lamp. Press four times again to unlock. When you want to config
the lamp must be ON, and then click four times.
5. If I turn on using moon shortcut, it won’t memorize moon.
In short: the FW21 X9L has only
memory if you ramp to a value.
It doesn’t memorize the floor, ceiling, or turbo levels when they’re
reached by a shortcut. This is on purpose, because people didn’t
like losing their memorized level after using moon or turbo. To make
it remember moon, the user must ramp
to it… typically, by ramping
up a little then back down. Basically, it behaves that way because
that’s what people asked for.
1 x LUMINTOP X9L Flashlight
